Collectors

Our company designs solar panels that ensure maximum thermal power, durability, easy installation and maximum service life. To achieve all the above, our solar panels are made of high quality materials, in accordance with European and Cypriot legislation, as well as based on ISO 9001 and SOLAR KEYMARK standards.

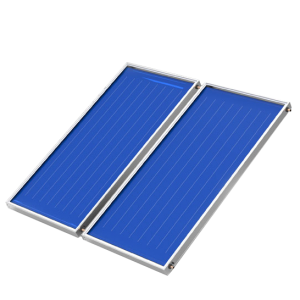

Flat plate panels

Panel

Made out of aluminium or INOX pre-painted steel shit.

Panel glass

Safety glass with low content of iron oxides, high permeability with a thickness of 3.2 & 4mm. Permeability: 91.6% ± 0.2%.

Insulation

50mm thickness glass wool with 24kg / sqm density.

Absorber

0.4mm thickness with selective blue tec Mirotherm aluminum surface with high selective absorption of 0.94%. Welded with laser technology. Aluminum is a lightweight corrosive material with high heat conductivity. This material enables the unique performance of this absorber.

Panel absorber

8 vertical 15mm pipes welded with 2 horizontal 22mm pipes.

Sealing

Double sided adhesive tape and IG-1K black silicone and EPDM rubber. (ethylene propylene-diene)

Dimencions Weight Capacity Pressure (bar) Absorber
cm m2 Kg L tested operation a e
1470×900 1.47 21 1.18 15 10 0.94±0.02 0.05±0.02
1500×1000 1.82 27 1.34 15 10 0.94±0.02 0.05±0.02
1740×900 1.97 30 1.34 15 10 0.94±0.02 0.05±0.02
2000×1000 2.43 37 1.69 15 10 0.94±0.02 0.05±0.02

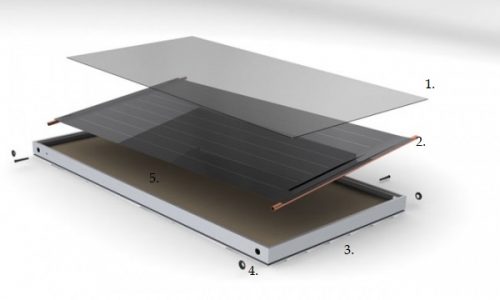

  1. Safety glass with low content of iron oxides, high permeability with a thickness of 3.2 & 4mm. Permeability: 91.6% ± 0.2%.
  2. Panel absorber.
  3. Outer aluminum case.
  4. Rubber ceilings to secure the absorber.
  5. Inner glass wool insulation.
